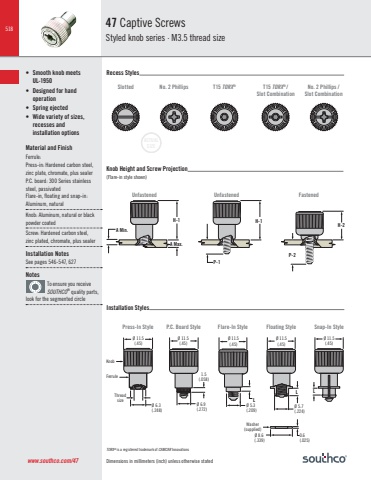

518Dimensions in millimeters (inch) unless otherwise statedPress-In Style Flare-In Style Floating Style Snap-In StyleØ 11.5(.45)FerruleKnobThreadsizeØ 6.3 (.248)Ø 11.5(.45)LØ 5.3 (.209)Ø 11.5(.45)0.6 (.025)Ø 5.7 (.224)Washer(supplied)LØ 8.6 (.339)P.C. Board StyleØ 11.5(.45)Ø 6.9 (.272)1.5(.058)LØ 11.5(.45)www.southco.com/4747 Captive ScrewsStyled knob series · M3.5 thread size• Smooth knob meets Recess StylesUL-1950 • Designed for hand operation• Spring ejected• Wide variety of sizes,recesses and installation optionsMaterial and FinishFerrule: Press-in: Hardened carbon steel, zinc plate, chromate, plus sealerP.C. board: 300 Series stainless steel, passivated Flare-in, floating and snap-in: Aluminum, naturalKnob: Aluminum, natural or black powder coatedScre Hardened carbon steel, zinc plated, chromate, plus sealerInstallation NotesSee pages 546-547, 627NotesTo ensure you receive SOUTHCO® quality parts, look for the segmented circleSlotted No. 2 Phillips T15 TORX®H-2P-2P-1H-1 H-1A Min.A Max.Unfastened Unfastened FastenedT15 TORX® /Slot CombinationNo. 2 Phillips /Slot CombinationKnob Height and Screw Projection(Flare-in style shown)Installation StylesTORX® is a registered trademark of CAMCAR InnovationsACTUALSIZE
