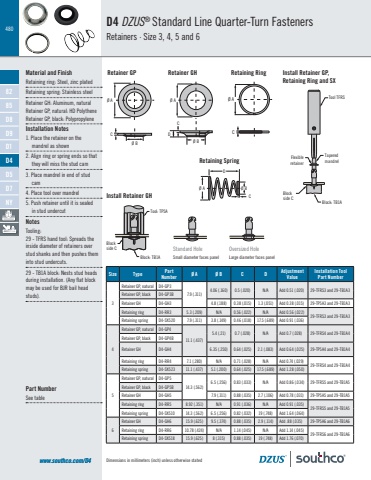

480www.southco.com/D4 Dimensions in millimeters (inch) unless otherwise statedØ ACØ BDRetainer GHØ ACØ BRetainer GP Ø ACRetaining RingPart NumberSee tableD4 DZUS® Standard Line Quarter-Turn FastenersRetainers · Size 3, 4, 5 and 6Material and FinishRetaining ring: Steel, zinc platedRetaining spring: Stainless steelRetainer GH: Aluminum, naturalRetainer GP, natural: HD PolytheneRetainer GP, black: Polypropylene Installation Notes1. Place the retainer on the mandrel as shown2. Align ring or spring ends so that they will miss the stud cam3. Place mandrel in end of stud cam4. Place tool over mandrel5. Push retainer until it is sealed in stud undercut NotesTooling:29 - TFRS hand tool: Spreads the inside diameter of retainers over stud shanks and then pushes them into stud undercuts.29 - TB1A block: Nests stud heads during installation. (Any flat block may be used for BJR bail head studs).Size Type Part Number Ø A Ø B C D Adjustment ValueInstallation Tool Part Number3Retainer GP, natural D4-GP37.9 (.311)4.06 (.160) 0.5 (.020) N/A Add 0.51 (.020) 29-TFRS3 and 29-TB1A3Retainer GP, black D4-GP3BRetainer GH D4-GH3 4.8 (.188) 0.38 (.015) 1.3 (.051) Add 0.38 (.015) 29-TP5A3 and 29-TB1A3Retaining ring D4-RR3 5.3 (.209) N/A 0.56 (.022) N/A Add 0.56 (.022)29-TFRS3 and 29-TB1A3Retaining spring D4-SX520 7.9 (.311) 3.8 (.149) 0.46 (.018) 17.5 (.689) Add 0.91 (.036)4Retainer GP, natural D4-GP411.1 (.437)5.4 (.21) 0.7 (.028) N/A Add 0.7 (.028) 29-TFRS4 and 29-TB1A4Retainer GP, black D4-GP4BRetainer GH D4-GH4 6.35 (.250) 0.64 (.025) 2.1 (.083) Add 0.64 (.025) 29-TP5A4 and 29-TB1A4 Retaining ring D4-RR4 7.1 (.280) N/A 0.71 (.028) N/A Add 0.74 (.029)29-TFRS4 and 29-TB1A4Retaining spring D4-SX523 11.1 (.437) 5.1 (.200) 0.64 (.025) 17.5 (.689) Add 1.28 (.050)5Retainer GP, natural D4-GP514.3 (.562)6.5 (.256) 0.83 (.033) N/A Add 0.86 (.034) 29-TFRS5 and 29-TB1A5Retainer GP, black D4-GP5BRetainer GH D4-GH5 7.9 (.311) 0.88 (.035) 2.7 (.106) Add 0.78 (.031) 29-TP5A5 and 29-TB1A5Retaining ring D4-RR5 8.92 (.351) N/A 0.91 (.036) N/A Add 0.91 (.035)29-TFRS5 and 29-TB1A5Retaining spring D4-SX510 14.3 (.562) 6.5 (.256) 0.82 (.032) 19 (.748) Add 1.64 (.064)6Retainer GH D4-GH6 15.9 (.625) 9.5 (.374) 0.88 (.035) 2.9 (.114) Add .88 (.035) 29-TP5A6 and 29-TB1A6Retaining ring D4-RR6 10.78 (.424) N/A 1.14 (.045) N/A Add 1.14 (.045)29-TFRS6 and 29-TB1A6Retaining spring D4-SX518 15.9 (.625) 8 (.315) 0.88 (.035) 19 (.748) Add 1.76 (.070)Install Retainer GHStandard HoleSmall diameter faces panelOversized HoleLarge diameter faces panelTool: TP5ABlock: TB1ABlockside CTool TFRSTaperedmandrel FlexibleretainerBlockside CBlock: TB1ATool: TP5ABlock: TB1ABlockside CTool TFRSTaperedmandrel FlexibleretainerBlockside CBlock: TB1ATool: TP5ABlock: TB1ABlockside CTool TFRSTaperedmandrel FlexibleretainerBlockside CBlock: TB1ARetaining SpringDØ ACØ BInstall Retainer GP, Retaining Ring and SXTool: TP5ABlock: TB1ABlockside CTool TFRSTaperedmandrel FlexibleretainerBlockside CBlock: TB1A8285D8D9D1D4D5D7NY
