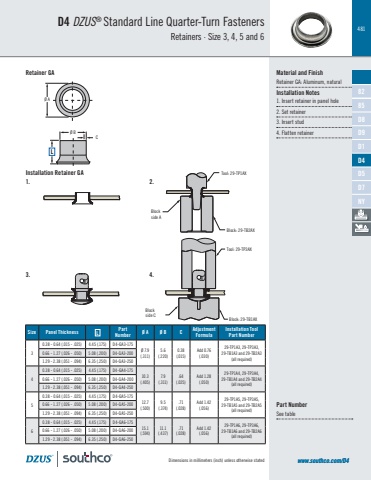

481Dimensions in millimeters (inch) unless otherwise stated www.southco.com/D4Material and FinishRetainer GA: Aluminum, naturalInstallation Notes1. Insert retainer in panel hole2. Set retainer3. Insert stud4. Flatten retainerD4 DZUS® Standard Line Quarter-Turn FastenersRetainers · Size 3, 4, 5 and 6Retainer GAwww.southco.com/D4Ø ACØ BLPart NumberSee tableTool: 29-TP1AXBlock: 29-TB2AXBlockside ATool: 29-TP3AXBlock: 29-TB1AXBlockside CInstallation Retainer GA1. 2.3. 4.Ø ACØ BLSize Panel Thickness L Part Number Ø A Ø B C Adjustment FormulaInstallation Tool Part Number30.38 - 0.64 (.015 - .025) 4.45 (.175) D4-GA3-175Ø 7.9 (.311)5.6 (.220)0.38 (.015)Add 0.76 (.030)29-TP1A3, 29-TP3A3,29-TB1A3 and 29-TB2A3 (all required)0.66 - 1.27 (.026 - .050) 5.08 (.200) D4-GA3-2001.29 - 2.38 (.051 - .094) 6.35 (.250) D4-GA3-25040.38 - 0.64 (.015 - .025) 4.45 (.175) D4-GA4-17510.3 (.405)7.9 (.311).64 (.025)Add 1.28 (.050)29-TP1A4, 29-TP3A4,29-TB1A4 and 29-TB2A4 (all required)0.66 - 1.27 (.026 - .050) 5.08 (.200) D4-GA4-2001.29 - 2.38 (.051 - .094) 6.35 (.250) D4-GA4-25050.38 - 0.64 (.015 - .025) 4.45 (.175) D4-GA5-17512.7 (.500)9.5 (.374).71 (.028)Add 1.42 (.056)29-TP1A5, 29-TP3A5,29-TB1A5 and 29-TB2A5 (all required)0.66 - 1.27 (.026 - .050) 5.08 (.200) D4-GA5-2001.29 - 2.38 (.051 - .094) 6.35 (.250) D4-GA5-25060.38 - 0.64 (.015 - .025) 4.45 (.175) D4-GA6-17515.1 (.594)11.1 (.437).71 (.028)Add 1.42 (.056)29-TP1A6, 29-TP3A6,29-TB1A6 and 29-TB2A6 (all required)0.66 - 1.27 (.026 - .050) 5.08 (.200) D4-GA6-2001.29 - 2.38 (.051 - .094) 6.35 (.250) D4-GA6-250D1D4D5D7NY82D8D985
