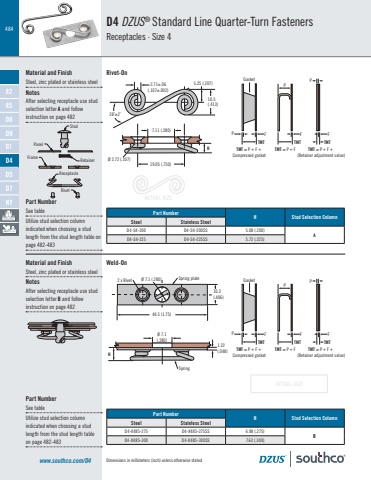

484Dimensions in millimeters (inch) unless otherwise statedACTUAL SIZEACTUAL SIZETMT = P + F + (Retainer adjustment value)F F FPPPTMT TMTTMT = P + F + Compressed gasketGasketTMT = P + F TMTD4 DZUS® Standard Line Quarter-Turn FastenersReceptacles · Size 4Material and FinishSteel, zinc plated or stainless steelNotesAfter selecting receptacle use studselection letter A and follow instruction on page 482Material and FinishSteel, zinc plated or stainless steelNotesAfter selecting receptacle use studselection letter B and follow instruction on page 4822.71±.06(.107±.002)5.25 (.207)10.5 (.413)H19.05 (.750)28˚±2˚7.11 (.280)Ø 2.72 (.107)Part NumberH Stud Selection ColumnSteel Stainless SteelD4-S4-200 D4-S4-200SS 5.08 (.200)AD4-S4-225 D4-S4-225SS 5.72 (.225)Rivet-On Weld-On 2 x Rivet Ø 7.1 (.280)10.3 (.406)H1.22 (.048)44.5 (1.75)Spring plate Spring Ø 7.1(.280)Part NumberH Stud Selection ColumnSteel Stainless SteelD4-X485-275 D4-X485-275SS 6.98 (.275)BD4-X485-300 D4-X485-300SS 7.62 (.300)www.southco.com/D4Part NumberSee tableUtilize stud selection column indicated when choosing a stud length from the stud length table on page 482-483Part NumberSee tableUtilize stud selection column indicated when choosing a stud length from the stud length table on page 482-483TMT = P + F + (Retainer adjustment value)F F FPPPTMT TMTTMT = P + F + Compressed gasketGasketTMT = P + F TMTStudRetainerReceptaclePanelFrameRivet8285D8D9D1D4D5D7NY
