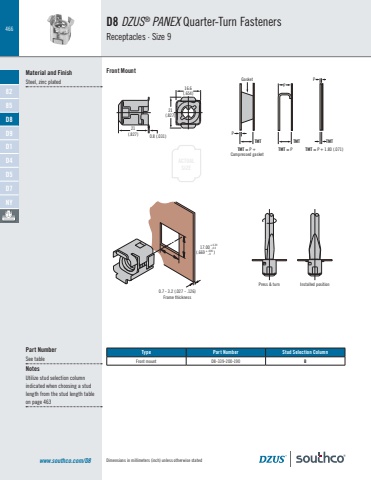

466Dimensions in millimeters (inch) unless otherwise statedACTUALSIZED8 DZUS® PANEX Quarter-Turn FastenersReceptacles · Size 9www.southco.com/D8Material and FinishSteel, zinc platedTMT = P + 1.80 (.071)PPPTMT TMTTMT = P + Compressed gasketGasketTMT = P TMTFront Mount 21(.827)16.6(.654)21(.827) 0.8 (.031)Type Part Number Stud Selection Column Front mount D8-339-200-190 BPart NumberSee tableNotesUtilize stud selection column indicated when choosing a stud length from the stud length table on page 463Press & turn Installed position0.7 - 3.2 (.027 - .126)Frame thickness17.00 (.669 )+ 0.20-0.0+ .008-.08285D8D9D1D4D5D7NY
