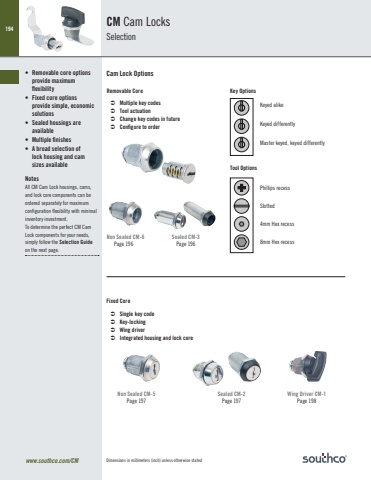

194Dimensions in millimeters (inch) unless otherwise stated194Removable Core Key OptionsTool OptionsFixed CoreNon Sealed CM-6 Sealed CM-3 Page 196 Page 196Non Sealed CM-5 Sealed CM-2 Wing Driver CM-1Page 197 Page 197 Page 198 Multiple key codes Tool actuation Change key codes in future Configure to order Single key code Key-locking Wing driver Integrated housing and lock corewww.southco.com/CMKeyed alikeKeyed differentlyMaster keyed, keyed differentlyPhillips recessSlotted4mm Hex recess8mm Hex recessCam Lock OptionsCM Cam LocksSelection• Removable core options provide maximum flexibility • Fixed core options provide simple, economic solutions• Sealed housings are available • Multiple finishes • A broad selection of lock housing and cam sizes availableNotesAll CM Cam Lock housings, cams, and lock core components can be ordered separately for maximum configuration flexibility with minimal inventory investment.To determine the perfect CM Cam Lock components for your needs, simply follow the Selection Guideon the next page.
