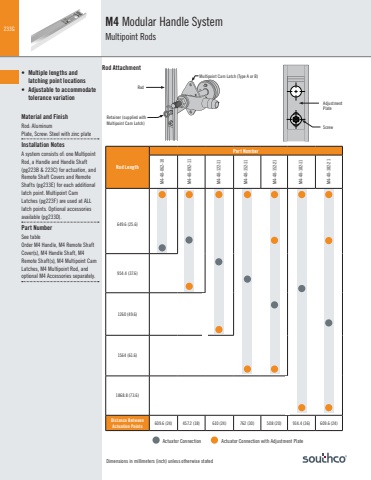

233G• Multiple lengths and latching point locations• Adjustable to accommodate tolerance variationMaterial and FinishRod: AluminumPlate, Scre Steel with zinc plateInstallation NotesA system consists of: one Multipoint Rod, a Handle and Handle Shaft (pg223B & 223C) for actuation, and Remote Shaft Covers and Remote Shafts (pg233E) for each additional latch point. Multipoint Cam Latches (pg223F) are used at ALL latch points. Optional accessories available (pg233D).Part NumberSee tableOrder M4 Handle, M4 Remote Shaft Cover(s), M4 Handle Shaft, M4 Remote Shaft(s), M4 Multipoint Cam Latches, M4 Multipoint Rod, and optional M4 Accessories separately.M4 Modular Handle SystemMultipoint RodsRod AttachmentM4-40-062-10M4-40-092-11M4-40-122-11M4-40-152-11M4-40-152-21M4-40-182-11M4-40-182-21Rod LengthPart Number649.6 (25.6)954.4 (37.6)1260 (49.6)1564 (61.6)1868.8 (73.6)Distance BetweenActuation Points 609.6 (24) 457.2 (18) 610 (24) 762 (30) 508 (20) 914.4 (36) 609.6 (24)Actuator Connection Actuator Connection with Adjustment PlateMultipoint Cam Latch (Type A or B)Retainer (supplied with Multipoint Cam Latch)RodScrewAdjustment PlateDimensions in millimeters (inch) unless otherwise stated
