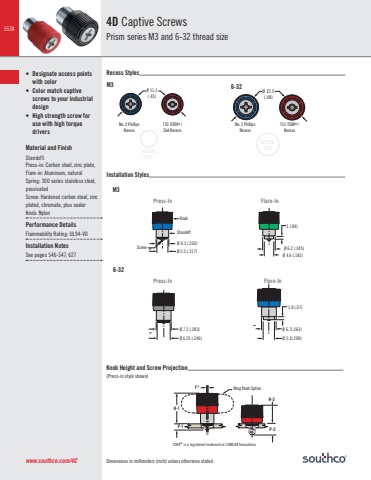

557ADimensions in millimeters (inch) unless otherwise statedM3Press-InPress-InFlare-InFlare-In6-32M36-32Ø 11.5(.45)20(.787)Ø 12.5(.48)Ø 5.5 (.217)Ø 6.3 (.250)Ø 4.6 (.181)1 (.04)Ø 6.2 (.245)Ø 6.25 (.246)Ø 7.2 (.283)Ø 5.3(.209)Ø 6.7(.263)1.8 (.07)Recess StylesInstallation StylesKnob Height and Screw Projection(Press-in style shown)• Designate access points with color• Color match captive screws to your industrial design• High strength screw for use with high torque driversMaterial and FinishStandoff: Press-in: Carbon steel, zinc plate,Flare-in: Aluminum, naturalSpring: 300 series stainless steel, passivatedScre Hardened carbon steel, zinc plated, chromate, plus sealerKnob: NylonPerformance DetailsFlammability Rating: UL94-V0Installation NotesSee pages 546-547, 6274D Captive ScrewsPrism series M3 and 6-32 thread sizewww.southco.com/4CTORX® is a registered trademark of CAMCAR InnovationsP-1H-1F*H-2P-2No. 2 Phillips RecessKnobScrewStandoffNo. 2 Phillips RecessT10 TORX® /Slot RecessT15 TORX® /RecessWing Knob OptionACTUALSIZEACTUALSIZE
