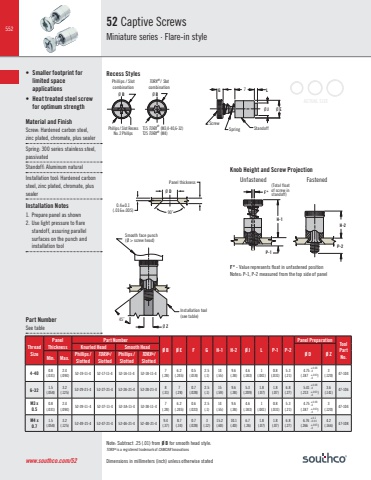

552Dimensions in millimeters (inch) unless otherwise stated52 Captive ScrewsMiniature series · Flare-in styleRecess StylesH-1P-1F*(Total float of screw in standoff)P-2 H-2Unfastened FastenedF* - Value represents float in unfastened positionNotes: P-1, P-2 measured from the top side of panel90˚ Panel thicknessØ D0.4±0.1(.016±.005)Ø Z45˚ Smooth face punch (Ø > screw head)Installation tool(see table)Note: Subtract .25 (.01) from Ø B for smooth head style.TORX® is a registered trademark of CAMCAR InnovationsKnob Height and Screw Projection• Smaller footprint forlimited space applications• Heat treated steel screwfor optimum strengthMaterial and FinishScre Hardened carbon steel, zinc plated, chromate, plus sealerSpring: 300 series stainless steel, passivated Standoff: Aluminum naturalInstallation tool: Hardened carbon steel, zinc plated, chromate, plus sealer Installation Notes1. Prepare panel as shown 2. Use light pressure to flare standoff, assuring parallel surfaces on the punch and installation toolØ EStandoff SpringScrew7Ø JØ B Ø BLTORX® / SlotcombinationPhillips / SlotcombinationPhillips / Slot RecessNo. 2 PhillipsT15 TORX® (M3,4-40,6-32)T25 TORX® (M4)GThreadSizePanel ThicknessPart NumberØ B Ø E F G H-1 H-2 Ø J L P-1 P-2Panel Preparation ToolPartNo.Knurled Head Smooth HeadØ D Ø Z Min. Max. Phillips /SlottedTORX®/SlottedPhillips / SlottedTORX®/Slotted4-40 0.8(.031)2.4(.094) 52-19-11-4 52-17-11-4 52-1A-11-4 52-18-11-4 7(.28)6.2(.245)0.5(.018)2.5(.1)14(.55)9.6(.38)4.6(.183)1(.041)0.8 (.031)5.3 (.21) 4.75 (.187 ) 3(.120) 47-1046-32 1.5(.058)3.2(.125) 52-29-21-4 52-27-21-4 52-2A-21-4 52-28-21-4 8(.31)7(.28)0.7(.028)2.5(.1)15(.59)9.6(.38)5.3(.209)1.8(.07)1.8 (.07)6.8 (.27) 5.41 (.213 )3.6(.141) 47-106M3 x0.50.8(.031)2.4(.094) 52-39-11-4 52-37-11-4 52-3A-11-4 52-38-11-4 7(.28)6.2(.245)0.6(.023)2.5(.1)14(.55)9.6(.38)4.6(.183)1(.041)0.8 (.031)5.3 (.21) 4.75 (.187 )3(.120) 47-104M4 x0.71.5(.058)3.2(.125) 52-49-21-4 52-47-21-4 52-4A-21-4 52-48-21-4 9.4(.37)8.7(.34)0.7(.028)3(.12)15.2(.60)10.1(.40)6.7(.26)1.8(.07)1.8 (.07)6.8 (.27) 6.76 (.266 )4.2(.166) 47-108ACTUAL SIZEwww.southco.com/52+0.1-0.04+.005-0+0.08-0+.003-0+0.08-0+.003-0+0.08-0+.003-0Part NumberSee table
