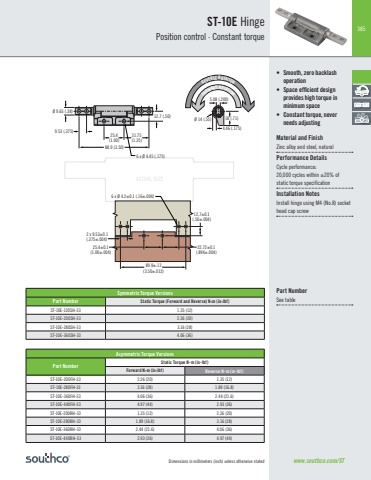

385Symmetric Torque VersionsPart Number Static Torque (Forward and Reverse) N•m (in•lbf)ST-10E-120SH-33 1.35 (12)ST-10E-200SH-33 2.26 (20)ST-10E-280SH-33 3.16 (28)ST-10E-360SH-33 4.06 (36)Asymmetric Torque VersionsPart Number Static Torque Nm (inlbf)Forward N•m (in•lbf) Reverse Nm (inlbf)ST-10E-200FH-33 2.26 (20) 1.35 (12)ST-10E-280FH-33 3.16 (28) 1.89 (16.8)ST-10E-360FH-33 4.06 (36) 2.44 (21.6)ST-10E-440FH-33 4.97 (44) 2.93 (26)ST-10E-200RH-33 1.35 (12) 2.26 (20)ST-10E-280RH-33 1.89 (16.8) 3.16 (28)ST-10E-360RH-33 2.44 (21.6) 4.06 (36)ST-10E-440RH-33 2.93 (26) 4.97 (44)ACTUAL SIZEDimensions in millimeters (inch) unless otherwise stated www.southco.com/STST-10E HingePosition control · Constant torqueØ 9.65 (.38)9.53 (.375) 25.4(1.00)88.9 (3.50)31.75 (1.25)6 x Ø 4.45 (.175)12.7 (.50) Ø 14 (.55) 18 (.71)6 x Ø 4.2±0.1 (.16±.004)2 x 9.53±0.1(.375±.004)25.4±0.1(1.00±.004)89.9±.13(3.50±.012)12.7±0.1(.50±.004)22.72±0.1(.894±.004)4.46 (.175)5.08 (.200)REVERSE ROTATIONFORWARD ROTATIONØ 9.65 (.38)9.53 (.375) 25.4(1.00)88.9 (3.50)31.75 (1.25)6 x Ø 4.45 (.175)12.7 (.50) Ø 14 (.55) 18 (.71)6 x Ø 4.2±0.1 (.16±.004)2 x 9.53±0.1(.375±.004)25.4±0.1(1.00±.004)89.9±.13(3.50±.012)12.7±0.1(.50±.004)22.72±0.1(.894±.004)4.46 (.175)5.08 (.200)REVERSE ROTATIONFORWARD ROTATION• Smooth, zero backlash operation• Space efficient design provides high torque in minimum space• Constant torque, never needs adjustingMaterial and FinishZinc alloy and steel, naturalPerformance DetailsCycle performance:20,000 cycles within ±20% of static torque specificationInstallation NotesInstall hinge using M4 (No.8) socket head cap screwPart NumberSee table
