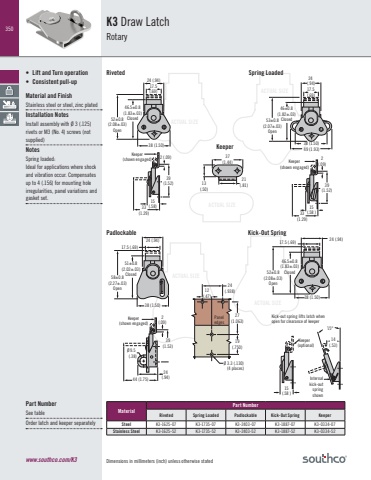

350ACTUAL SIZEACTUAL SIZEACTUAL SIZEACTUAL SIZEACTUAL SIZEDimensions in millimeters (inch) unless otherwise statedK3 Draw LatchRotary• Lift and Turn operation • Consistent pull-upMaterial and FinishStainless steel or steel, zinc plated Installation NotesInstall assembly with Ø 3 (.125)rivets or M3 (No. 4) screws (not supplied) NotesSpring loaded:Ideal for applications where shock and vibration occur. Compensates up to 4 (.156) for mounting hole irregularities, panel variations and gasket set. Part NumberSee tableOrder latch and keeper separately38 (1.50)52±0.8(2.08±.03)Open46.5±0.8(1.83±.03)Closed24 (.94)15(.58) 33(1.29)39(1.52)2 (.09)17.5(.69)21(.81) 13(.50)37(1.44)Keeper(shown engaged)Riveted Spring LoadedPadlockable Kick-Out Spring38 (1.50)53±0.8(2.07±.03)Open46±0.8(1.82±.03)Closed24 (.94)15(.58 ) 33(1.29)39(1.52)2(.09)17.5(.69)Keeper(shown engaged)2113 (.81)(.50)37(1.44)49 (1.93)17.5 (.69)2(.09)39(1.53)9.5(.38)24 (.94)58±0.8(2.27±.03)Open51±0.8(2.02±.03)Closed24(.94) 44 (1.75)38 (1.50)Ø13 21 (.81)(.50)37 (1.44)Keeper(shown engaged)38 (1.50)52±0.8(2.08±.03)Open46.5±0.8(1.83±.03)Closed24 (.94)15(.58 )17.5 (.69)15°14(.53)Kick-out spring lifts latch when open for clearance of keeper Keeper(optional)21(.81)13(.50)37 (1.44)Internalkick-outspringshown2412 (.938)(.47)27(1.063)19(.750)3.3 (.130)(4 places)ØPaneledges21(.81) 13(.50)37(1.44)KeeperMaterialPart NumberRiveted Spring Loaded Padlockable Kick-Out Spring KeeperSteel K3-1625-07 K3-1735-07 K3-2403-07 K3-1887-07 K3-0334-07Stainless Steel K3-1625-52 K3-1735-52 K3-2403-52 K3-1887-52 K3-0334-52www.southco.com/K3
