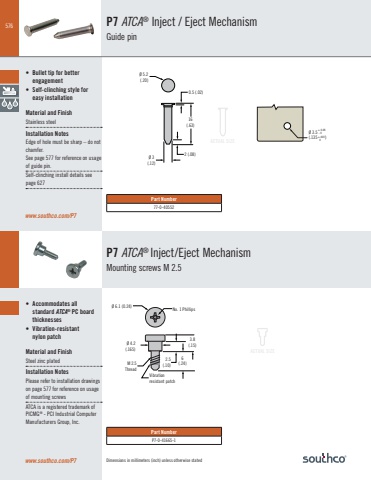

576Dimensions in millimeters (inch) unless otherwise statedwww.southco.com/P7www.southco.com/P7P7 ATCA® Inject / Eject MechanismGuide pinP7 ATCA® Inject/Eject MechanismMounting screws M 2.5Ø 5.2 (.20)16(.63)2 (.08)0.5 (.02)Ø 3(.12)Ø 6.1 (0.24) Ø 4.2(.165)3.8(.15)2.5(.10)6(.24)No. 1 PhillipsM 2.5ThreadVibration resistant patch• Bullet tip for better engagement• Self-clinching style for easy installationMaterial and FinishStainless steelInstallation NotesEdge of hole must be sharp – do not chamfer.See page 577 for reference on usage of guide pin.Self-clinching install details see page 627• Accommodates all standard ATCA® PC board thicknesses• Vibration-resistant nylon patchMaterial and FinishSteel zinc platedInstallation NotesPlease refer to installation drawings on page 577 for reference on usage of mounting screwsATCA is a registered trademark of PICMG® - PCI Industrial Computer Manufacturers Group, Inc.ACTUAL SIZEACTUAL SIZEPart Number77-0-40552Part NumberP7-0-41665-1Ø 3.5(.135 )+ 0.08 - 0 +.003 04.08(.161)25.4(1.0)PCP or faceplatemountinglocation formicroswitchITT MDS002or equivalent6.1(.24)8 (.31)Min.PCB mountingcenterline4 (.157)
