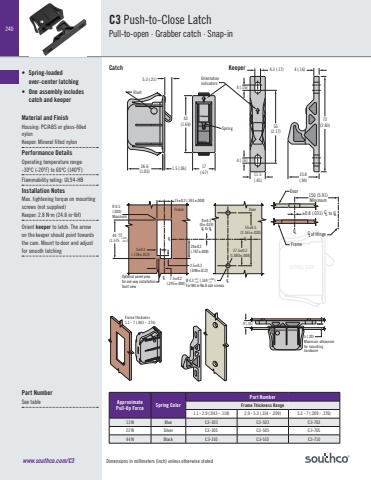

Dimensions in millimeters (inch) unless otherwise stated240www.southco.com/C3ACTUAL SIZEApproximate Pull-Up Force Spring ColorPart NumberFrame Thickness Range1.1 - 2.9 (.043 - .114) 2.9 - 5.3 (.114 - .209) 5.3 - 7 (.209 - .276)13 N Blue C3-303 C3-503 C3-70322 N Silver C3-305 C3-505 C3-70544 N Black C3-310 C3-510 C3-710C3 Push-to-Close LatchPull-to-open · Grabber catch · Snap-inCatchPart NumberSee tableKeeper17(.67)43(1.69)1.5 (.06) 26.6(1.05)Rivet4 (.16)4 (.16)55(2.17)4.3 (.17)23.8(.94)4 (.16)72(2.83)5.3 (.21)11.5(.45)Orientation indicatorsSpringCLCLCLCL7.5±0.2(.295±.008) Ø 4.3 (.169 ) For M4 or No.8 size screws27.5±0.2(1.083±.008)20±0.2(.787±.008)15±0.2 (.591±.008) 40 (1.575 )55±0.5(2.165±.020)CL CL0±0.2(0±.039)Frame Door R 0.5 (.020)Maximum+0.1 -0.0+.004 - 0to3±0.3(.118±.012)2.5±0.3(.098±.012)Optional panel prepfor one way installationfront view+0.5 -0.3+.020 -.012CLDoorFrame±0.8 (.031) to CL CL150 (5.91)MinimumCLof HingeFrame thickness 1.1 - 7 (.043 - .276)5 (.20)Maximum allowance for mountinghardware9 (.35)• Spring-loaded over-center latching• One assembly includes catch and keeperMaterial and FinishHousing: PC/ABS or glass-filled nylonKeeper: Mineral filled nylonPerformance Details Operating temperature range:-30ºC (-20ºF) to 60ºC (140ºF)Flammability rating: UL94-HBInstallation NotesMax. tightening torque on mounting screws (not supplied)Keeper: 2.8 Nm (24.8 inlbf)Orient keeper to latch. The arrow on the keeper should point towards the cam. Mount to door and adjust for smooth latching
