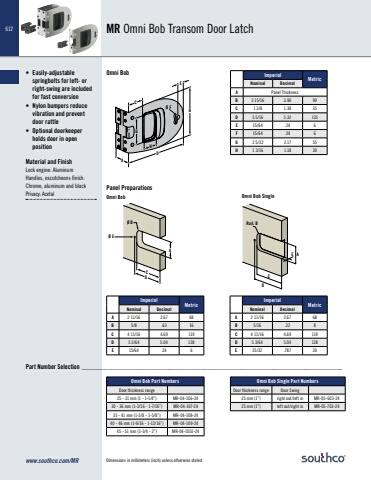

612 www.southco.com/MRMR Omni Bob Transom Door Latch%u2022 Easily-adjustable springbolts for left- or right-swing are included for fast conversion%u2022 Nylon bumpers reduce vibration and prevent door rattle%u2022 Optional doorkeeper holds door in open positionMaterial and FinishLock engine: AluminumHandles, escutcheons finish: Chrome, aluminum and blackPrivacy: AcetalCEB %u00d8 FDGHAPanel PreparationsOmni Bob SingleOmni BobA%u00d8 BCD%u00d8 EOmni BobOmni Bob Part NumbersDoor thickness range25 - 31 mm (1 - 1-1/4%u201d) MR-04-106-2430 - 36 mm (1-3/16 - 1-7/16%u201d) MR-04-107-2435 - 41 mm (1-3/8 - 1-5/8%u201d) MR-04-108-2440 - 46 mm (1-9/16 - 1-13/16%u201d) MR-04-109-2445 - 51 mm (1-3/4 - 2%u201d) MR-04-1010-24Omni Bob Single Part NumbersDoor thickness range Door Swing25 mm (1%u201d) right out/left in MR-05-603-2425 mm (1%u201d) left out/right in MR-05-703-24Imperial MetricNominal DecimalA Panel ThicknessB 3 15/16 3.90 99C 1 3/8 1.38 35D 5 5/16 5.32 135E 15/64 .24 6F 15/64 .24 6G 2 5/32 2.17 55H 1 3/16 1.18 30Imperial MetricNominal DecimalA 2 11/16 2.67 68B 5/8 .63 16C 4 11/16 4.69 119D 5 3/64 5.04 128E 15/64 .24 6Imperial MetricNominal DecimalA 2 11/16 2.67 68B 5/16 .32 8C 4 11/16 4.69 119D 5 3/64 5.04 128E 25/32 .787 20Part Number Selection _______________________________________________________________________________E ARad. BCDDimensions in millimeters (inch) unless otherwise stated
